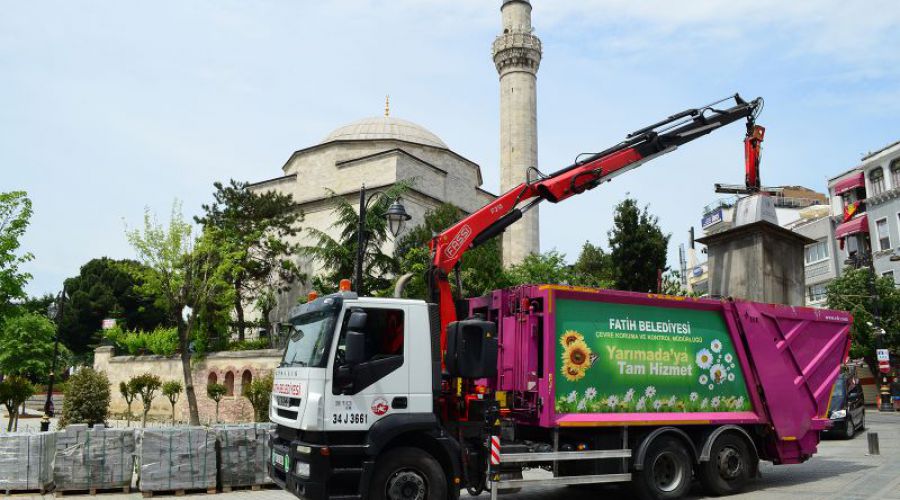

Fassi Knuckle BoomMedium-Duty Cranes for Garbage Collection Systems
From 13 t/m upwards we enter the realm of medium capacity knuckle boom cranes, which provide performance but at the same time are extremely dynamic. Suitable to be fitted on two- and three-axle trucks, in a variety of setups. The technological fittings include all the most innovative electronic, hydraulic and mechanical components. Not without reason are therefore fitted with devices that are state-of-the-art in terms of both performance and safety. To this must be added the availability of the Prolink function and a rich series of additional accessories and devices.
| Max. Lifting Capacity |  |
20.08 ton/m |
| Max. Hydraulic Outreach |  |
14,65 metre |
| Slewing Angle |  |
400° |
| Slewing Torque |  |
33,5 kNm |
| Recommended Pump Capacity |  |
45 l/min |
| Oil Tank |  |
120litre |
| Dead Weight |  |
2005kg |
F215A.0.21- Lifting capacity at horizontal position
| 1. | |||
| kg | 9.370 | 4.660 | 3.300 |
| m | 2,00 | 4,30 | 6,10 |
F215A.0.22 - Lifting capacity at horizontal position
| 1. | 2. | |||
| kg | 9.200 | 4.380 | 3.055 | 2.315 |
| m | 2,00 | 4,30 | 6,10 | 8,05 |
F215A.0.23 - Lifting capacity at horizontal position
| 1. | 2. | 3. | |||
| kg | 9.030 | 4.180 | 2.875 | 2.145 | 1.695 |
| m | 2,00 | 4,35 | 6,20 | 8,10 | 10,10 |
F215A.0.24 - Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | |||
| kg | 8.890 | 4.150 | 2.720 | 2.000 | 1.555 | 1.220 |
| m | 2,00 | 4,30 | 6,25 | 8,20 | 10,20 | 12,30 |
F215A.0.25- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 8.770 | 3.850 | 2.590 | 1.880 | 1.435 | 1.105 | 915 |
| m | 2,00 | 4,55 | 6,35 | 8,25 | 10,30 | 12,35 | 14,35 |
