LIGHT AND COMPACT CRANE

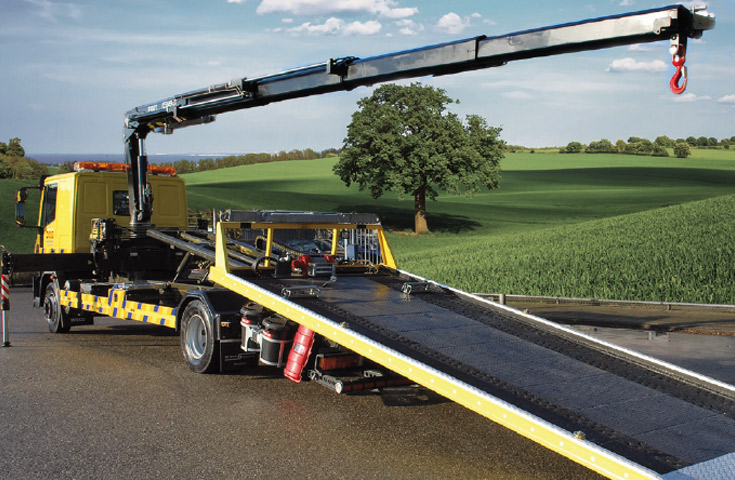

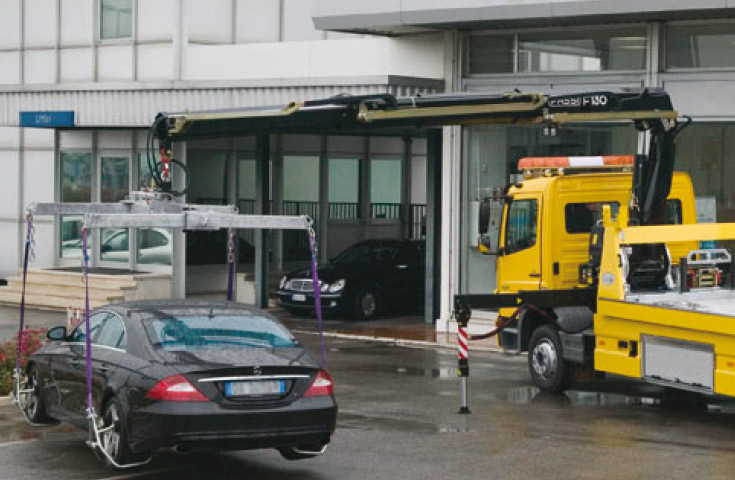

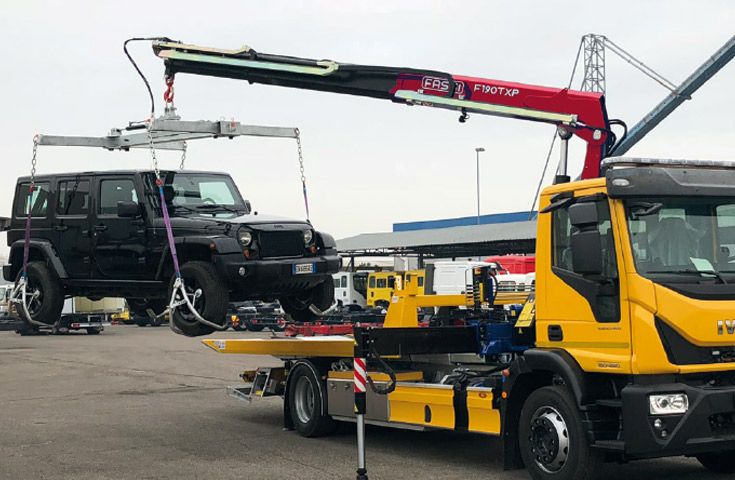

Fassi cranes of the T range are expressly designed for vehicle recovery. Therefore they are compact so as not to require particular wheelbases, light so as not to weigh down the total mass on the ground, efficient so as to be able to recover even big commercial vehicles and fit to lift efficiently the vehicles using the specific lifting tool.
OUTRIGGERS
Hydraulically extendable outriggers also in “Extra wide” and “Super Extra wide” execution, with hoses fitted inside the outrigger supports (standard only on dynamic crane version). Available as option manual or hydraulic tiltable outriggers.
| Max. Lifting Capacity |  |
12,30 ton/m |
| Max. Hydraulic Outreach |  |
10,05 metre |
| Slewing Angle |  |
390° |
| Slewing Torque |  |
17,6 kNm |
| Recommended Pump Capacity |  |
40 l/min |
| Oil Tank |  |
90 litre |
| Dead Weight |  |
1585kg |
F130AT.13 - Lifting capacity at horizontal position
| 1. | 2. | 3 | ||
| kg | 5.365 | 2.930 | 1.980 | 1.470 |
| m | 2,30 | 4,15 | 6,00 | 8,00 |
F130AT.14- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | ||
| kg | 5.125 | 2.775 | 1.845 | 1.335 | 1.055 |
| m | 2,35 | 4,20 | 6,05 | 8,05 | 10,05 |
