Fassi Knuckle BoomHeavy-Duty Cranes

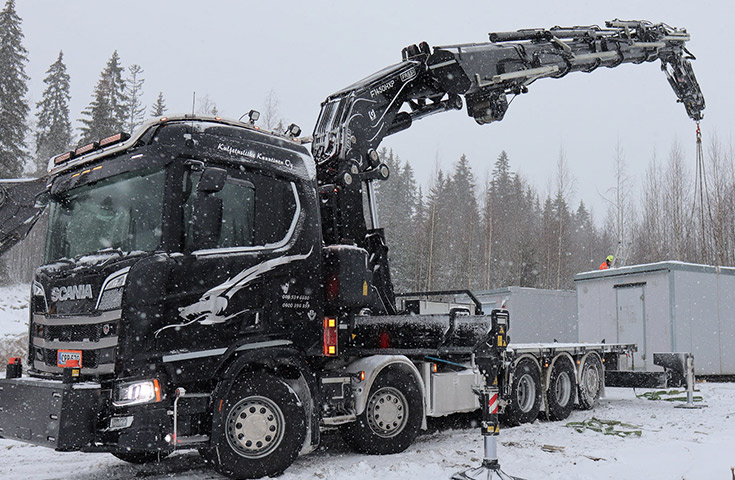

Fassi has revolutionised the traditional idea of heavy-weight knuckle boom crane, to be installed on 3 or 4-axle trucks. These cranes stand out for their ability to combine exceptional lifting performance with a machine body that reduces structural dimensions to a minimum and aims at limiting tare weight. This is possible thanks to the use of special materials, first among which are the extremely high elasticity steels which, while they ensure formidable levels of resistance, also make it possible to optimise weight. This is why Fassi is able to offer a crane “without compromise”.
Naturally, particular care is given to reliability, although this has to be reconciled with dynamics, which are an integral part of the very concept of hydraulic cranes.
| Max. Lifting Capacity |  |
113,60ton/m |
| Max. Hydraulic Outreach |  |
31,80metre |
| Slewing Angle |  |
Continuous360° |
| Slewing Torque |  |
100,00 kNm |
| Recommended Pump Capacity |  |
100+100 l/min |
| Oil Tank |  |
250+250litre |
| Dead Weight |  |
14040kg |
F1450R.2.4- Lifting capacity at horizontal position
| 1. | 2. | 3. | |||
| kg | 25000 | 20275 | 15480 | 12330 | 10175 |
| m | 4,00 | 5,60 | 7,30 | 9,15 | 11,15 |
F1450R.2.6- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 25000 | 19235 | 14550 | 11450 | 9320 | 7825 | 6745 |
| m | 4,20 | 5,80 | 7,40 | 9,20 | 11,20 | 13,25 | 15,40 |
F1450R.2.7- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | 6. | |||
| kg | 25000 | 18530 | 13975 | 10945 | 8850 | 7375 | 6305 | 5570 |
| m | 4,35 | 5,80 | 7,55 | 9,40 | 11,35 | 13,40 | 15,50 | 17,50 |
F1450R.2.8- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | 6. | 7. | |||
| kg | 25000 | 18110 | 13605 | 10600 | 8515 | 7045 | 5980 | 5245 | 4690 |
| m | 4,30 | 5,85 | 7,60 | 9,45 | 11,45 | 13,45 | 15,55 | 17,55 | 19,55 |
F1450R.2.6-L826- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 4185 | 3870 | 3585 | 3145 | 2400 | 1970 | 1660 |
| m | 18,55 | 19,85 | 21,25 | 22,65 | 24,20 | 25,80 | 27,50 |
F1450R.2.7-L826- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 3350 | 3100 | 2885 | 2700 | 2400 | 1970 | 1660 |
| m | 20,55 | 21,85 | 23,25 | 24,65 | 26,15 | 27,80 | 29,50 |
F1450R.2.8-L826- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 2650 | 2465 | 2300 | 2150 | 2000 | 1735 | 1465 |
| m | 22,55 | 23,85 | 25,25 | 26,65 | 28,15 | 29,80 | 31,50 |
F1450R.2.8-L826 JDP- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 3620 | 3335 | 3085 | 2870 | 2400 | 1970 | 1660 |
| m | 18,55 | 19,85 | 21,25 | 22,65 | 24,20 | 25,80 | 27,50 |
