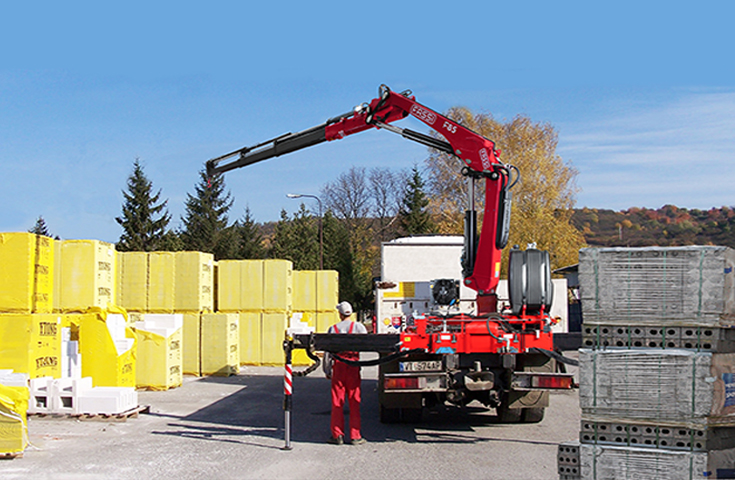

Fassi Knuckle Boom Light-Duty Cranes
Particular attention is given to the design and production of knuckle boom cranes with a lifting capacity of between 1 and 12 t/m, bearing in mind the growing market needs and the use of these machines. Fassi light-weight cranes, which are also available in a wide range of versions, starting from “micro” cranes, combine reduced weight, compactness and limited dimensions, but without foregoing all those factors typical of Fassi quality, both in the structure and in the details. These light-weight loader cranes mean that you can have Fassi quality even on light-weight trucks, even 3.5 TM (total mass) trucks that can be driven with a normal driving license.
| Max. Lifting Capacity |  |
8,56 ton/m |
| Max. Hydraulic Outreach |  |
11,50metre |
| Slewing Angle |  |
400° |
| Slewing Torque |  |
11,7 kNm |
| Recommended Pump Capacity |  |
30-40 l/dak |
| Oil Tank |  |
90 litre |
| Dead Weight |  |
890 kg |
F85B.0.21 - Lifting capacity at horizontal position
| 1. | ||||
| kg | 4000 | 3610 | 2245 | 1535 |
| m | 2,00 | 2,25 | 3,75 | 5,55 |
F85B.0.22 - Lifting capacity at horizontal position
| 1. | 2. | ||||
| kg | 3920 | 3520 | 2145 | 1450 | 1045 |
| m | 2,00 | 2,25 | 3,85 | 5,60 | 7,50 |
F85B.0.23 - Lifting capacity at horizontal position
| 1. | 2. | 3. | ||||
| kg | 3800 | 3425 | 2050 | 1370 | 970 | 725 |
| m | 2,00 | 2,25 | 3,90 | 5,70 | 7,55 | 9,40 |
F85B.0.24 - Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | ||||
| kg | 3750 | 3330 | 1950 | 1290 | 895 | 650 | 515 |
| m | 2,00 | 2,25 | 4,00 | 5,75 | 7,65 | 9,50 | 11,30 |
