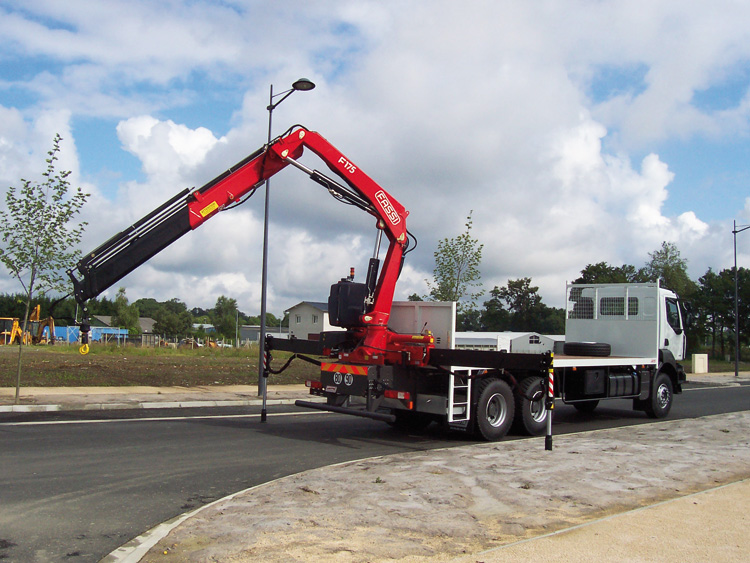

Fassi Knuckle BoomMedium-Duty Cranes
From 13 t/m upwards we enter the realm of medium capacity knuckle boom cranes, which provide performance but at the same time are extremely dynamic. Suitable to be fitted on two- and three-axle trucks, in a variety of setups. The technological fittings include all the most innovative electronic, hydraulic and mechanical components. Not without reason are therefore fitted with devices that are state-of-the-art in terms of both performance and safety. To this must be added the availability of the Prolink function and a rich series of additional accessories and devices.
| Max. Lifting Capacity |  |
16,92 ton/m |
| Max. Hydraulic Outreach |  |
14,65 metre |
| Slewing Angle |  |
400° |
| Slewing Torque |  |
27,3 kNm |
| Recommended Pump Capacity |  |
40 l/min |
| Oil Tank |  |
120litre |
| Dead Weight |  |
1970 kg |
F175A.0.21- Lifting capacity at horizontal position
| 1. | |||
| kg | 8.000 | 3.880 | 2.755 |
| m | 2,00 | 4,35 | 6,15 |
F175A.0.22 - Lifting capacity at horizontal position
| 1. | 2. | |||
| kg | 7.850 | 3.720 | 2.580 | 1.955 |
| m | 2,00 | 4,30 | 6,10 | 8,05 |
F175A.0.23 - Lifting capacity at horizontal position
| 1. | 2. | 3. | |||
| kg | 7.680 | 3.800 | 2.410 | 1.785 | 1.415 |
| m | 2,00 | 4,05 | 6,20 | 8,10 | 10,10 |
F175A.0.24 - Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | |||
| kg | 7.535 | 3.360 | 2.260 | 1.640 | 1.275 | 1.005 |
| m | 2,00 | 4,45 | 6,25 | 8,20 | 10,20 | 12,30 |
F175A.0.25- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 7.415 | 3.220 | 2.135 | 1.525 | 1.155 | 890 | 735 |
| m | 2,00 | 4,55 | 6,35 | 8,25 | 10,30 | 12,35 | 14,35 |
