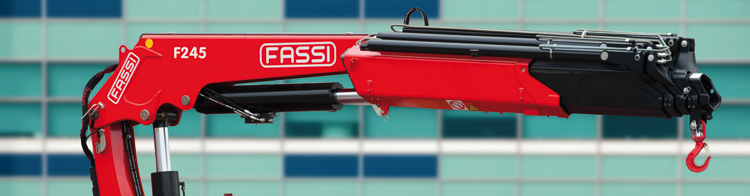

Fassi Knuckle BoomMedium-Duty Cranes
From 13 t/m upwards we enter the realm of medium capacity knuckle boom cranes, which provide performance but at the same time are extremely dynamic. Suitable to be fitted on two- and three-axle trucks, in a variety of setups. The technological fittings include all the most innovative electronic, hydraulic and mechanical components. Not without reason are therefore fitted with devices that are state-of-the-art in terms of both performance and safety. To this must be added the availability of the Prolink function and a rich series of additional accessories and devices.
| Max. Lifting Capacity |  |
23,55 ton/m |
| Max. Hydraulic Outreach |  |
16,80 metre |
| Slewing Angle |  |
420º |
| Slewing Torque |  |
37,1 kNm |
| Recommended Pump Capacity |  |
45-65l/dak |
| Oil Tank |  |
190litre |
| Dead Weight |  |
2400kg |
F245A.0.22- Lifting capacity at horizontal position
| 1. | 2. | |||
| kg | 8.900 | 5.550 | 3.855 | 2.915 |
| m | 2,50 | 4,25 | 6,10 | 8,05 |
F245A.0.23 - Lifting capacity at horizontal position
| 1. | 2. | 3. | |||
| kg | 8.700 | 5.330 | 3.675 | 2.745 | 2.190 |
| m | 2,50 | 4,35 | 6,20 | 8,15 | 10,15 |
F245A.0.24 - Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | |||
| kg | 8.500 | 5.120 | 3.495 | 2.580 | 2.030 | 1.625 |
| m | 2,50 | 4,40 | 6,25 | 8,20 | 10,20 | 12,25 |
F245A.0.25 - Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | |||
| kg | 8.350 | 4.930 | 3.340 | 2.435 | 1.890 | 1.490 | 1.225 |
| m | 2,50 | 4,50 | 6,35 | 8,30 | 10,30 | 12,35 | 14,35 |
F245A.0.26- Lifting capacity at horizontal position
| 1. | 2. | 3. | 4. | 5. | 6. | |||
| kg | 8.200 | 4.765 | 3.210 | 2.320 | 1.780 | 1.380 | 1.120 | 950 |
| m | 2,50 | 4,55 | 6,40 | 8,35 | 10,35 | 12,40 | 16,50 | 16,50 |
